The HUAYEE HY480C earns a conditional yes, but its owner becomes part of the service department

Finish red

Screen size 58"

Weight 1234 lbs

Owner rating 4.5 / 5

Owners reporting 17

Our Verdict

Buy the HY480C for recurring bucket and attachment work on an acreage, small farm or yard if you can inspect, tension, service and troubleshoot it yourself; skip it for revenue-critical uptime, full-tank work on inclines or a purchase built around the 1,234-pound claim or a flow-hungry attachment.

Check Price on Amazon

The hardware earns this machine a hearing. The three-section hydraulic system is visible, the captured red version carries a 23 hp RATO V-twin, and exact owners report useful work with the bucket, forks, grapple, mixer, cutter, power rake and trencher. At a listed 44 in wide, it can reach jobs that make a full-size loader an expensive spectator.

The evidence is encouraging, not mature. The longest clearly documented exact-model account reaches 36 hours, and another spans only a couple of months without stating hours. All eight retained Amazon review texts award five stars, while the captured aggregate is 4.5 stars from 17 ratings, so the surviving narratives plainly do not contain every less-positive experience behind the average.

Two problems keep this from an easy recommendation. A full tank leaked around the low fuel filler when one owner pointed the machine uphill, and another HY480C owner in the same retained discussion recognized the fault. A different owner watched the hydraulic-temperature display climb beyond 71 °C with the factory fluid and stopped the machine, although his temperatures later improved substantially after a fluid change. Gasoline escaping beside hot machinery is a safety problem; a brief successful attachment run does not establish sustainable temperature under continuous hydraulic demand.

Model control matters almost as much as maintenance. This page covers Amazon ASIN B0F4J9R1DR, the captured red, stand-on HY480C with low parallel tracks and a bucket. It does not fold in the yellow dealer-channel LHY480 or the wheeled sit-down HY480D, and later official material markets an HY480C with a 25 hp water-cooled Honda. That could be a revision, option, regional configuration or loose marketing, so the build sheet and engine plate need to match the machine on the truck.

Three hydraulic sections widen the menu, not the duty cycle

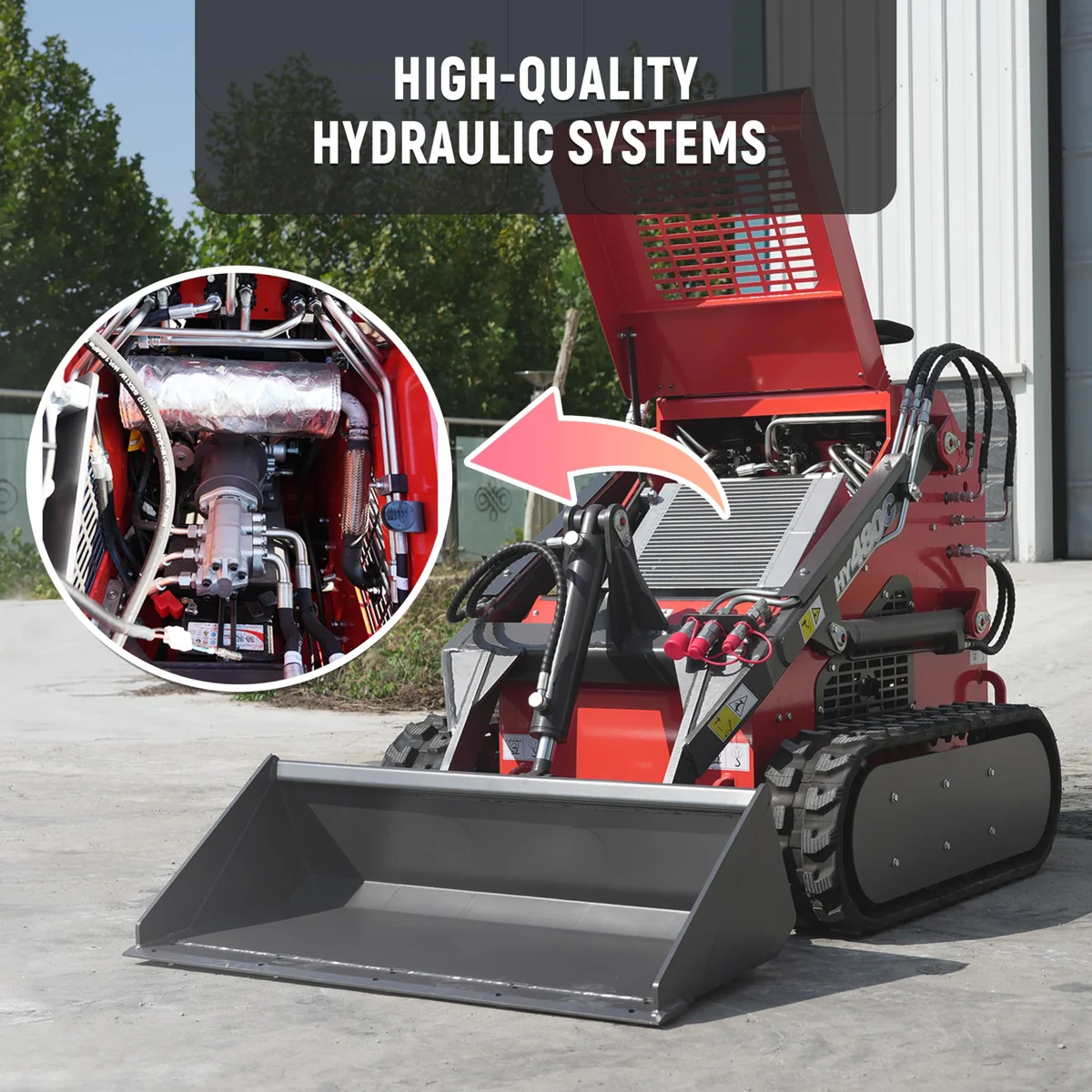

The strongest mechanical reason to choose the HY480C is real. Multiple walk-arounds show a three-section pump and three valve sections, so three pump is more than an unsupported listing phrase. HUAYEE describes one section serving a track and bucket curl, another serving the opposite track and boom lift, and the larger middle section serving the auxiliary circuit. That separation helps the loader travel and work an attachment without surrendering an entire drive side.

The architecture permits more combined functions, but the manual split-stick controls do not make them effortless. Each main lever drives one track fore and aft while lateral movement controls either boom lift or bucket curl, so steering, reversing and feathering the loader can demand several coordinated hand movements at once.

It still does not give the buyer a settled continuous-flow number. The most detailed close-up reads the pump markings and calculates roughly 11.4 GPM for the auxiliary section at high engine speed. That is a theoretical displacement-and-rpm result, not a flow-meter test at 17 MPa while the tracks and loader functions are consuming power. The reviewer also disclosed an affiliate relationship and free attachments from HUAYEE, so Skid Steer Mulch gives his broad performance conclusions less weight than the close mechanical observations.

This distinction matters because a tool can spin in a demonstration and still be a bad continuous match. Engine horsepower, flow at working pressure, motor displacement, case drain, oil temperature, attachment mass and control technique all have to survive together. A three-section pump removes one plumbing handicap; it does not issue every attachment a passport.

Mechanical fit is comparatively well documented. One owner calls the plate Toro Dingo style, another measured it at just under 23 in, and the close-up shows half-inch flat-face couplers plus a third case-return line for motor attachments. None of that makes the word universal safe. Plate geometry, latch engagement, hose ends, case-drain routing, flow, pressure, weight, hose clearance and warranty approval still belong on the same order sheet.

Attachment weight can consume stability before the tool picks up anything. The mini mulcher is described at about 570 lb, and one reviewer estimated the grapple at roughly 250 to 300 lb. Buyers need to count that dead weight, its forward center of gravity and the oil it demands. Our mini skid steer attachment guide explains the full match, while the guide to two-pump and three-pump hydraulics explains what the extra section really buys.

If continuous mowing, grinding or mulching is the reason for the machine rather than an occasional extra job, start with our guide to the best mini skid steers for powered attachments. The HY480C should be chosen around a verified tool, not asked to justify a tool after both have arrived.

HUAYEE HY480C, view 2

HUAYEE HY480C, view 3

HUAYEE HY480C, view 4

HUAYEE HY480C, view 6

HUAYEE HY480C, view 2

HUAYEE HY480C, view 3

HUAYEE HY480C, view 4

HUAYEE HY480C, view 6

The lift claim stops where stability begins

The 1234 lbs in the product title is not the machine’s weight. HUAYEE labels that figure rated operating capacity and lists the loader itself at 2,050 lb. It also publishes 1,765 lb as maximum lifting force, a separate hydraulic claim that cannot be rewritten as safe pallet capacity, full-height payload or permission to travel with that much weight.

The owner loads are more useful than an unsupported victory lap around the larger numbers. One machine carried eight 80-pound bags of concrete on a pallet when the stack stayed close; another handled 600 lb on forks when properly loaded. A large boulder was raised only slightly before traction, rather than lift height, moved it uphill. Those examples show useful work, traction and pushing in those owners’ conditions. They do not prove 1,234 lb at an undisclosed load center.

The same 36-hour owner reports that an excessive forward load can lift the rear of the machine. That is the boundary. Once the back rises, the hydraulics have enough force to turn the loader into the thing being lifted. The proper response is not to treat rear lift as a scale or to improvise ballast; keep the load close and low, and obtain the manufacturer’s load definition before approaching its published rating.

Dump height needs the same discipline. The Amazon record says 58 in, while a HUAYEE live demonstration loosely describes the raised bucket as reaching about 8 ft. Those figures likely refer to different points on the loader geometry, and no exact owner supplied a tape-measured full-dump result. Measure the wall or hopper the cutting edge must clear instead of letting full lift stand in for usable dump clearance.

Our guide to mini skid steer lift capacity separates hydraulic force, tipping load and rated operating capacity. The guide to working mini skid steers on slopes covers the other half of the problem: no supplied source establishes a standardized safe angle for this machine, however confident an owner felt on a particular hill.

The value case includes your own wrenching

Value here is measured by the work displaced and the uncertainty the owner absorbs. For a property owner repeatedly moving gravel, dirt, firewood, engine blocks, brush and pallets through tight access, the included bucket and demonstrated attachment range can retire a great deal of hand labor. For a contractor, the number at checkout matters less than the hours a crew may spend waiting on a disabled machine.

The HY480C is also not merely a red LHY480 sold through a different checkout. A side-by-side inspection found shared lift-arm and bucket ideas, a closely related three-section hydraulic concept, a large cooler and similar split-stick controls. It also found differences substantial enough to change the buyer: engine, undercarriage, platform, service room, tie-down position and support structure.

Neither track design wins by slogan. The detailed HY480C owner preferred large end rollers and the simpler low path, while the comparator favored the LHY480’s elevated drive and more substantial undercarriage layout. Broader owner evidence for inexpensive high-drive machines contains its own bearing, tension and derailment failures. Correct tension, roller support, debris control, turning technique and parts quality matter more than whether the sprocket sits high enough to photograph well.

HY480D is a different decision again. It is a wheeled, sit-down machine with a seat and a different work layout, not a newer HY480C. Readers who want that format should use the separate HY480D assessment instead of carrying this tracked machine’s capacity or owner history across one letter.

The seller is part of the machine

The exact Amazon owners describe successful freight delivery, liftgate unloading, early order updates and quick replies. The listing also warns that ordinary parcel tracking may refer to the separately shipped manual, that the machine’s location is relayed by a representative and that freight returns are considered case by case. A separately ordered heavy attachment may arrive in its own crate without anyone prepared to place it where the buyer wants. Confirm each crate, liftgate capacity and ground-placement obligation before the truck is scheduled.

Brand-level buying accounts pull in opposite directions. Buyers discussing HUAYEE excavators on Reddit describe the company as real and responsive while also reporting confusingly similar domains and easier communication by text. That is brand and buying-channel context, not HY480C performance evidence.

A separate Facebook thread contains an unresolved factory-direct delivery and refund dispute, plus positive owners and a report that HUAYEE agreed to send a replacement engine for another machine. That record does not prove the captured Amazon seller unsafe or guarantee it safe. It makes payment protection, legal seller identity and written remedies essential.

If those answers remain vague, the machine has not become a bargain; the missing paperwork has merely moved its risk onto the buyer. Compare the decision with the site’s HY480C and TYPHON STOMP analysis, or restart from the small-farm mini skid steer guide if service access and repeatable property work matter more than this particular model.

At 36 hours, this is a setup report

The undercarriage record illustrates both sides of the machine. More than one exact unit arrived with tracks that needed adjustment. One owner lost a track twice in soft soil around rocks while the tension was too loose, corrected it, and reported no further derailment through 36 hours over dirt, clay, gravel, pavement and sharp flint. That is a successful early correction, not a verdict on track life, drive-motor life or long-term bearing support.

The adjustment itself is grease-actuated and simple once reached, but the fitting sits behind a steel guard held by six bolts in the detailed owner account. The guard may help keep debris away from the running gear; it also puts six fasteners between the owner and a critical check. Owners discussed cutting an access hole, but no supplied source establishes that modification as approved. Use proper blocking and the actual service procedure rather than copying an improvised track recovery from a video or review.

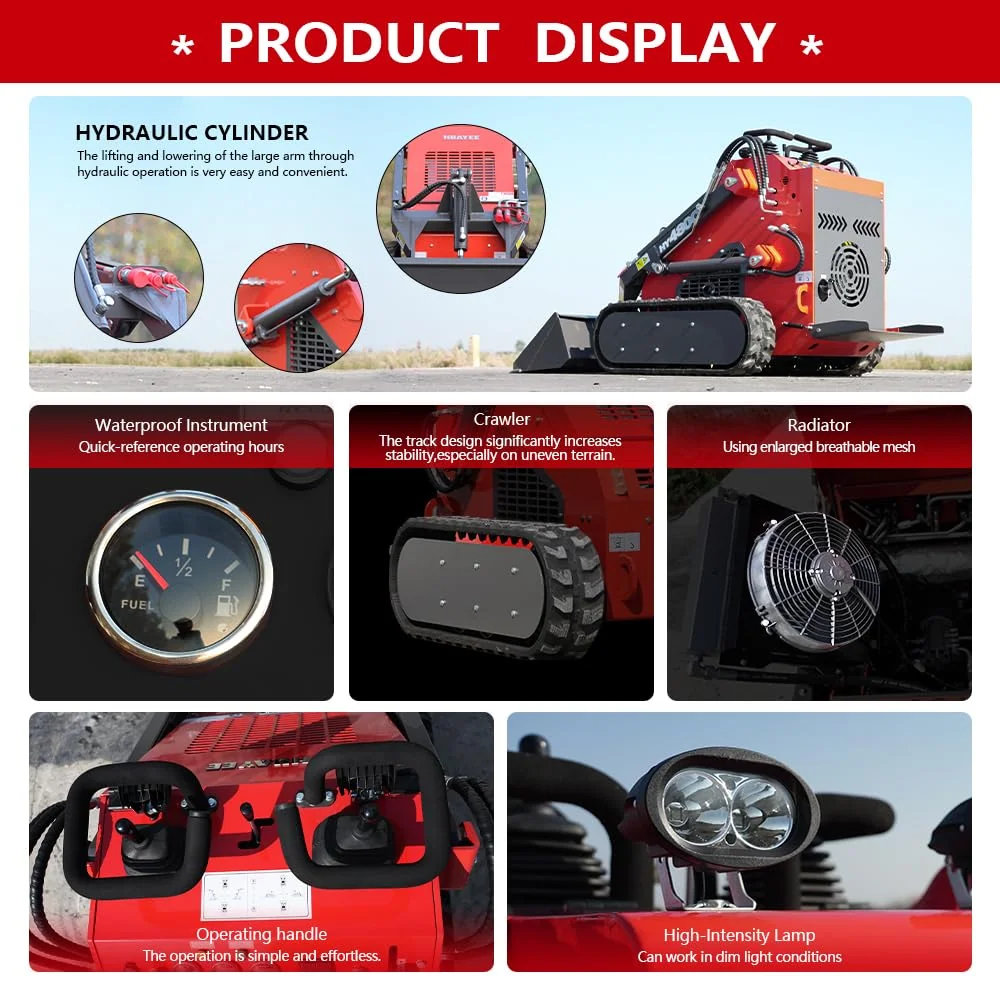

The cooler is substantial, but the heat evidence is mixed

A large front hydraulic cooler with a thermostatic electric fan is plainly present. The 36-hour owner changed roughly five gallons of AW 46 immediately as a precaution and reports no heat-related shutdown. The couple-month owner kept the factory fluid through a 10-hour break-in, watched the displayed temperature continue past 71 °C, and shut the machine down. After changing to a premium ISO 46 fluid, he reports 56–60 °C for hours when he avoided continuous full throttle.

That does not prove every factory fill is bad, that 71 °C exceeds every component’s allowed range or that one fluid cures every heat problem. It proves one exact machine showed a continuing temperature climb that prompted shutdown, then lower displayed temperatures after an owner intervention. HUAYEE and an owner source also disagree about the fan’s nominal switch point; possible causes include a production revision, calibration, conditions or presenter error. The serial-specific manual or a written manufacturer limit should establish the fluid and allowed temperature range, and a temperature that continues climbing warrants stopping to find the cause.

Routine service mixes thoughtful details with needless contortion

The RATO engine’s factory drain hose and accessible spin-on filter make an oil change unusually tidy. Checking the oil is the opposite. Two owners independently complain that the dipstick sits far inside the body, and a close-up demonstrates reaching through the rear and withdrawing it at an angle. The rear panel can be removed, the hydraulic cooler hinges upward, and the pump, filters, tank and much of the hard-line plumbing are visible. Access is workable, but a routine level check requires more contortion than it should.

Hearing protection belongs in the operating kit. One exact owner reports 95 dB without documenting the instrument, distance or engine speed, so the number is not a controlled sound test; it is still enough reason not to assume the operator station is hearing-safe.

Exact owners praise early phone and text responses, order updates and the stated ability to supply parts. None of the retained HY480C accounts documents a major engine, pump or drive claim, labor reimbursement, an expensive return or a prolonged parts shortage. The captured listing promises one year of coverage for manufacturer defects and says freight returns are reviewed individually. That is evidence of an accessible early contact and a written term, not a proven repair network.

Before the first hard job, inspect fluid levels, hydraulic temperature behavior, track tension, grease, couplers, battery connections, visible leaks, fasteners and both quick-attach locking pins. Our guide to common mini skid steer problems provides the full arrival inspection without assuming every HY480C leaves the warehouse unfinished.
